Thermopile vs Thermocouple: Complete Comparison & How Focusensing Fits In

Thermopile vs Thermocouple: Complete Comparison & How Focusensing Sensors Fit In

Q: Why is thermopile response slower than a thermocouple?

Thermopiles typically have larger thermal mass (absorber layers, multiple junctions) and require thermal balancing, which increases response time compared to bare thermocouple junctions.

TL;DR Thermocouples are robust, fast, and excellent for high-contact and high-temperature uses. Thermopiles combine many thermocouples (or junctions) to increase output and sensitivity, ideal for non-contact IR and small temperature-difference detection. This guide covers principles, comparison metrics, application maps, selection checklists, trends, and how Focusensing’s products match real engineering needs.

1. What Is a Thermocouple?

A thermocouple is a temperature sensor made from two dissimilar metals joined at one end (the hot junction). A temperature difference between the hot junction and a reference (cold) junction generates a small voltage via the Seebeck effect. That voltage is then translated into temperature with calibration and often cold-junction compensation. :contentReference[oaicite:0]{index=0}

Key traits: wide temperature range, very fast response, simple structure, low cost — but low single-junction output (microvolts), so good signal conditioning and cold-junction compensation are required. :contentReference[oaicite:1]{index=1}

2. What Is a Thermopile?

A thermopile is essentially many thermocouple junctions arranged electrically in series (and thermally in parallel) so their voltages add up — increasing output and sensitivity for small temperature differences or radiation detection (IR). Thermopiles are widely used in non-contact thermometers, IR detectors, heat-flux sensors and energy-harvesting prototypes. :contentReference[oaicite:2]{index=2}

Key traits: higher aggregated output, better small-ΔT detection, optimized for IR absorption; slower thermal response (greater thermal mass/thermal balancing), more complex packaging and calibration. :contentReference[oaicite:3]{index=3}

3. Key Performance Comparison

Below is a concise table comparing typical performance dimensions. Replace numeric “typical” values with your lab or product data for exact claims.

Metric	Thermocouple (typical)	Thermopile (typical)	Engineering note
Output (µV/°C)	~5–50 µV/°C (single junction)	Sum of many junctions → tens → hundreds µV/°C	Higher aggregated output eases amplification
Temperature range	Very wide, from cryogenic up to >1000°C (type dependent)	Usually limited to lower-moderate ranges (material/packaging dependent)	Use thermocouple for extreme high-T
Response time	Fast: ms range	Slower: tens → hundreds ms or more	Control loops often prefer thermocouples
Sensitivity / SNR	Lower (single junction)	Higher (multi-junction)	Thermopiles excel at small ΔT and IR sensing
Cost & complexity	Low, simple	Higher: junction count, absorber coatings, packaging	Balance cost vs system-level gain

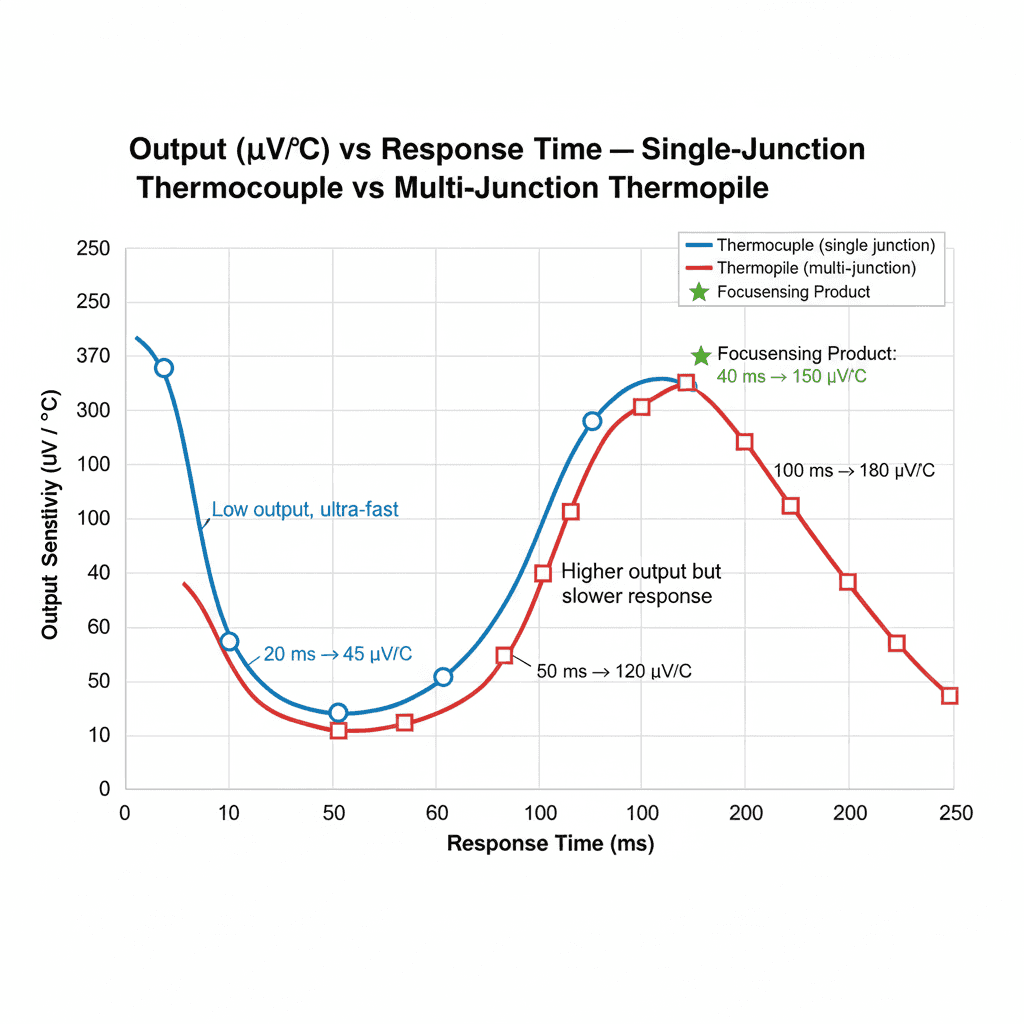

Output (µV/°C) vs Response Time — Single-Junction Thermocouple vs Multi-Junction Thermopile

Notes: thermopile operation and aggregated junction behavior are described by standard thermopile references. :contentReference[oaicite:4]{index=4}

4. Typical Application Scenarios (When to use which)

Scenario	Typical Requirements	Recommended Sensor	How Focusensing helps
Industrial furnaces & high-T contact	Very high temp, ruggedness, fast response	Thermocouple (Type K/J/S etc.)	Custom thermocouple probes and sheaths from Focusensing for high-T & harsh environments. :contentReference[oaicite:5]{index=5}
Non-contact IR thermometers & fever screening	Radiation sensing, small ΔT sensitivity, calibrated IR measurement	Thermopile (MEMS thermopile modules)	Focusensing MEMS thermopile modules with IR absorber and calibration options. :contentReference[oaicite:6]{index=6}
Automotive / EV battery monitoring	Moderate temp range, many sensors, reliability	Thermocouple / RTD / NTC depending on location	Focusensing NTC/RTD & thermocouple lines for battery, thermal management. :contentReference[oaicite:7]{index=7}

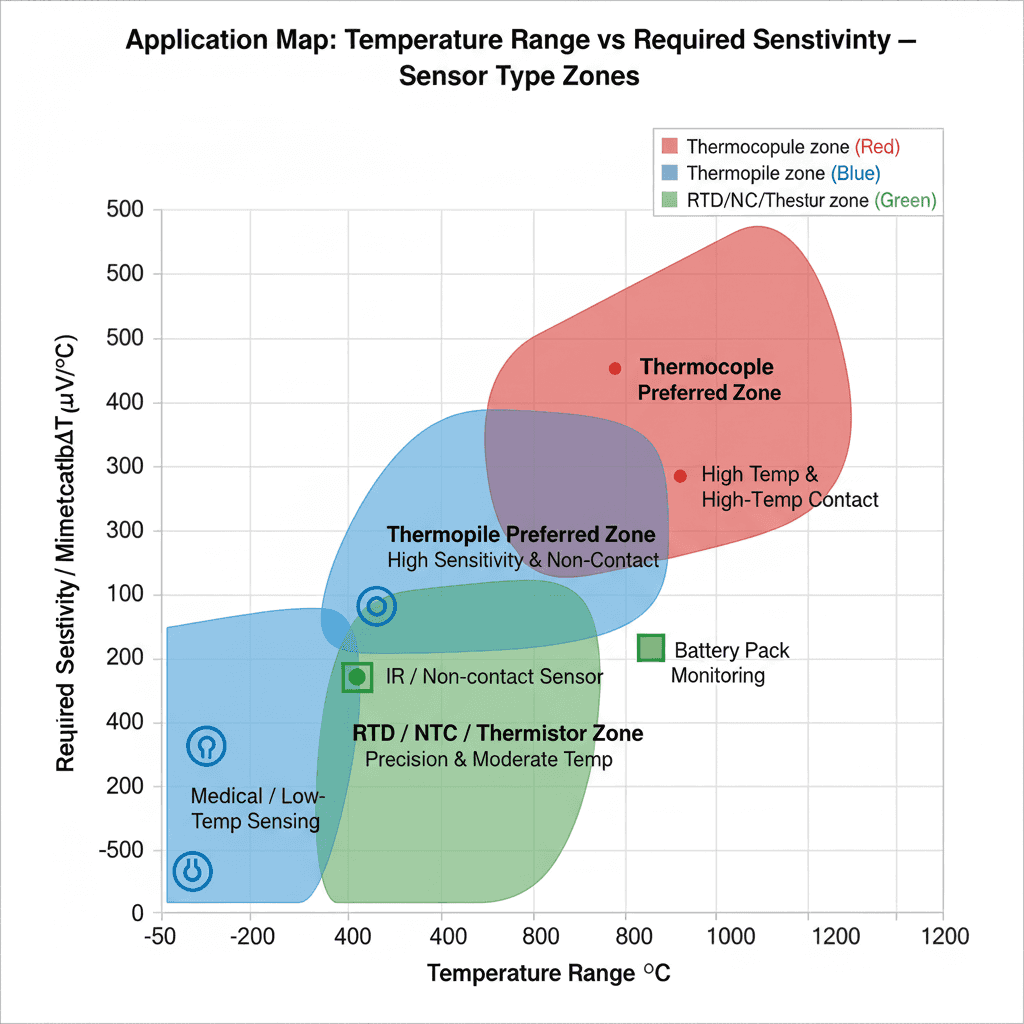

Application Map: Temperature Range vs Required Sensitivity — Sensor Type Zones

Industry examples (thermopile adoption in sensors and CO₂ detectors) demonstrate thermopile modules’ industry traction for medical and environmental sensing. :contentReference[oaicite:8]{index=8}

5. How to Choose: An Engineer’s Selection Guide

Quick decision flow

Is the measurement contact or non-contact? Contact → thermocouple or RTD. Non-contact → thermopile (or infrared module).
Temperature range required? Extreme high → thermocouple.
Response speed required? Fast control → thermocouple.
Sensitivity to small ΔT or IR radiation? Thermopile preferred.

Design checklist

Signal conditioning: low-noise amplifier, cold-junction compensation for thermocouples.
Packaging: sheath materials for thermocouples; IR window, absorber, and thermal isolation for thermopiles. :contentReference[oaicite:9]{index=9}
Calibration & drift management: schedule and method (blackbody, reference baths).
Mechanical & environmental protection: dust, moisture, vibration, thermal shock.

6. Technology Trends & Research

Recent trends include MEMS thermopile miniaturization (lower thermal mass → faster response), improved absorber materials, digital integration (I²C, SPI modules with onboard calibration), and energy-harvesting micro-thermopiles for IoT. Academic and industrial developments continue to push MEMS thermopile performance and integration. :contentReference[oaicite:10]{index=10}

7. FAQ

Q: Can a thermopile replace a thermocouple?

A: Not always. For extreme temperature ranges, harsh contact environments, or high-speed control, thermocouples are often more suitable. For non-contact IR and small ΔT detection, thermopiles often outperform a single thermocouple. :contentReference[oaicite:11]{index=11}

Q: Why do thermopiles respond slower?

A: Thermopiles usually have larger thermal mass (absorber layers, multiple junctions) and require thermal balancing, which increases response time compared to bare thermocouple junctions. :contentReference[oaicite:12]{index=12}

Q: How do I handle low output signal?

A: Increase junction count (if feasible), optimize absorber and thermal isolation, use low-noise amplifiers and differential measurement techniques. :contentReference[oaicite:13]{index=13}
