Thermistor Mounting 101: Best Practices for Accurate Temperature Measurement

Nov 19, 2026

Thermistor Mounting: 4 Methods Compared by Response Time

Thermistor mounting decides how fast a thermistor responds and how far its reading sits from the true temperature. For the same element, liquid immersion is fastest, a joint filled with thermal compound or epoxy comes next, and a dry taped or clipped contact is slowest and reads lowest.

Updated November 19, 2026.

The table compares the four methods on one worked example, a 10 kΩ epoxy-coated NTC bead on a 60 °C metal surface in 25 °C still air, and adds published figures for immersed and threaded probes.

Mounting method Response time (to 63 %) Reading error Basis
1. Surface contact, dry (tape or clip, no compound) about 9 to 12 s about 20 to 27 °C low our calculation, model below
1. Surface contact with silicone thermal compound under 2 s about 2 to 4 °C low our calculation, compound at 0.7 W/m·K
1. Ring-lug assembly bolted to a heat sink no mounted figure published 14 °C low on a 60.3 °C heat sink in one test; the lug itself was within 2 °C of the sink Texas Instruments SNIA053
2. Epoxy bonded with thermally conductive epoxy about 0.4 to 1 s about 0.9 to 2.2 °C low our calculation, epoxy at 1.3 W/m·K
3. Insertion probe: bare bead immersed in oil about 1.2 s (15 s thermal time constant, medium not stated) no surface-to-air split; a shallow tip reads toward the fitting Vishay NTCLE100E3
4. Threaded fitting or sealed capsule in water 13 to 16 s from 25 °C air into boiling water; 30 s or less in water at 0.4 m/s small when the tip sits well inside the flow Vishay NTCAIMME3; our MFP-7 threaded sensor

Calculated rows are best cases: the model leaves out the bead's own coating, so real joints are a little slower and read a little lower. None of the figures in the table is a measurement made for this article.

Why the mount sets the response time

A mounted thermistor settles at a temperature between two heat paths: the path from the surface or fluid you want to measure, and the path from the element to the surrounding air through its body and leads. TDK lists the mounting configuration (immersed or surface-mounted) and the surrounding medium next to sensor design as the main influences on a thermistor's thermal time constant, and states that its published thermal figures refer to still air (TDK NTC thermistors, general technical information).

A single-node heat balance turns that into two formulas (our derivation; TDK gives the matching relation between time constant, heat capacity and dissipation factor):

  • Reading offset = (T surface − T air) × δ ÷ (δ + G)
  • Mounted time constant = C ÷ (δ + G), with C = datasheet time constant × δ

Here δ is the dissipation factor to the air in mW/K, from the data sheet; G is the thermal conductance of the joint to the target in mW/K; and C is the heat capacity of the sensor in mJ/K.

For the Vishay NTCLE100E3, a common 10 kΩ epoxy-coated bead with copper leads, the data sheet gives a 15 s thermal time constant and a 7 mW/K dissipation factor, so C is about 105 mJ/K (Vishay NTCLE100E3; C is our calculation). Assume the bead touches the surface over a 2 mm × 2 mm patch with a gap of 0.02 to 0.05 mm. Filled with air (0.0262 W/m·K at 25 °C), that gap passes about 2.1 to 5.2 mW/K; filled with a 0.7 W/m·K silicone compound it passes about 56 to 140 mW/K (conductance = conductivity × area ÷ gap, our calculation). With the dry joint the bead settles about 20 to 27 °C below the 60 °C surface, because its body and leads lose more heat to the air than the joint brings in. With compound the offset falls to about 1.7 to 3.9 °C and the time constant falls from about 9 to 12 s to 0.7 to 1.7 s.

The fast end of that range is optimistic. In oil, where liquid surrounds the whole bead, Vishay gives a response of about 1.2 s, and a surface joint is unlikely to beat full immersion because the bead's coating sits in series with either path.

Two conclusions hold whatever the exact geometry. A larger G makes the sensor faster and more accurate at the same time, because both formulas share the same denominator. A smaller δ cuts the offset in proportion: a small glass bead with fine leads, insulation laid over the sensor, or leads run along the surface before they leave it. TDK names size, shape and leads as what sets δ (TDK).

The mounting error can easily exceed the sensor's own tolerance. A standard ±1 % 10 kΩ NTC is about ±0.2 °C at 25 °C (NTC vs PTC vs RTD vs thermocouple table), so a 2 to 4 °C joint error is 10 to 20 times the tolerance you paid for.

Real assemblies show offsets of this size. In a Texas Instruments heat-sink test, a ring-lug NTC read 46.3 °C while a thermal camera showed the heat sink at 60.3 °C and the lug itself at 58.8 °C, and TI names the lug itself and the thermally conductive epoxy inside it as the two main factors, with the epoxy as the biggest (TI application note SNIA053, June 2023). That is one assembly in one test, and TI was comparing it with a silicon sensor it sells, but it shows that the joint inside a bought sensor matters as much as the joint you make. Choose the mount for its heat path first and for convenience second.

The 4 thermistor mounting methods

The four methods differ in what fills the space between the element and the thing being measured, and that is what sets their response time and error.

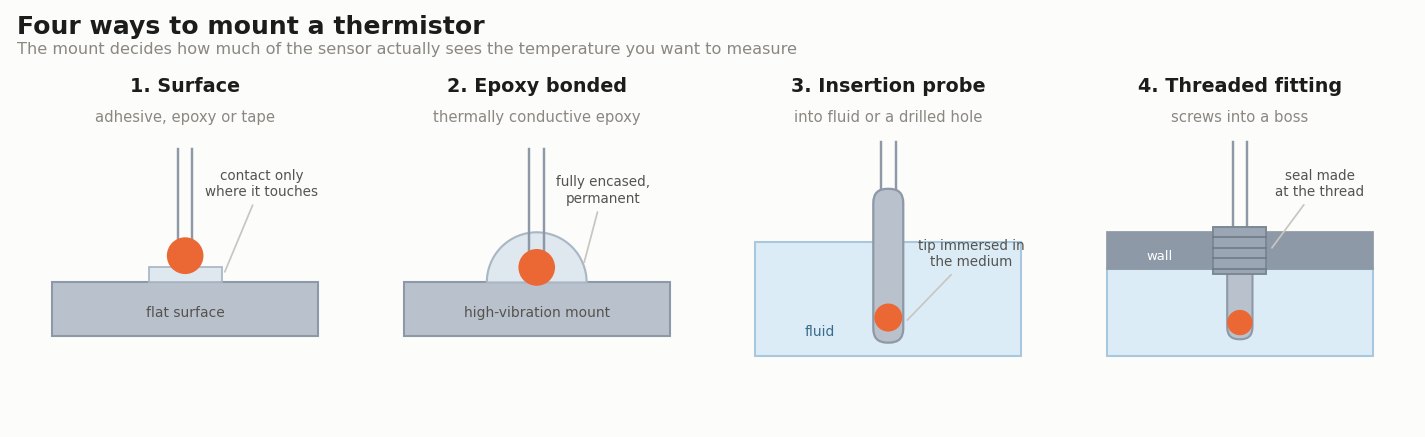

Diagram of four thermistor mounting methods: surface contact, epoxy bonded, insertion probe in a fluid and threaded fitting through a wall
The four mounting methods. What fills the gap between the element and the target sets the response time and the error.

1. Surface mounting

  • How it works: Attach the thermistor directly to a surface (metal or plastic) with a clip, a clamp, tape or an adhesive pad, with thermal compound in the joint.
  • Best for: flat or gently curved parts you can reach from outside, such as heat sinks, motor housings, battery tabs and plates. For pipes, use a clamp or strap sized for the pipe; our pipe-strap vs clamp-on comparison covers that choice.
  • Response and error: set almost entirely by the joint. In the worked example a dry joint gives about 9 to 12 s and 20 to 27 °C low; the same joint with compound gives under 2 s and about 2 to 4 °C low.
  • Watch out: a ring lug is a surface mount too. Bolted under a screw, the copper lug follows the surface closely, but the element sits in potting inside the lug, and that internal joint is fixed by whoever built the sensor.
  • In battery packs: press the sensor into the gap between two cells and hold it there while hot glue or epoxy sets. Tape alone can loosen as the pack warms and cools. Do not read through fish paper or thick tape, which couple poorly. Mount on the cell can, not on the copper interconnect, because the cell temperature is what the protection circuit needs.

2. Epoxy bonding

  • How it works: the element is glued to the surface with a thermally conductive epoxy, which fills the gap and holds the sensor in one step.
  • Best for: permanent fixing where vibration would loosen a clip or tape, or where there is no screw point.
  • Response and error: thermally close to a good compound joint. MG Chemicals rates its 8329TCM epoxy at 1.3 W/m·K and its 860 silicone compound at 0.7 W/m·K (8329TCM data sheet, 860 data sheet); in the worked example the epoxy joint settles in about 0.4 to 1 s and reads about 0.8 to 1.7 °C closer to the surface than the compound joint (our calculation).
  • Watch out: the bond is permanent, and the epoxy's service range limits the mount: MG Chemicals gives −40 to 150 °C for 8329TCM. Check the sensor's data sheet before encapsulating it; Vishay states that its NTCLE100E3 bead is "not intended for potted applications" (Vishay NTCLE100E3).
  • Temperature limit: check the adhesive's continuous rating before bonding near a heater. A general-purpose epoxy may not be rated for the temperature of a 3D-printer hot end, and a sensor glued into a heater block with one can work loose once the bond breaks down. For that duty we suggest an adhesive whose data sheet states a continuous rating above your maximum temperature, or a mechanical fixing such as a clip or set screw.

3. Insertion probe

  • How it works: the thermistor sits in a probe tip that is pushed into a liquid, a gas stream or a drilled hole in a solid part.
  • Best for: fluids, and solid parts where you can drill a hole for the tip.
  • Response and error: in a liquid this is the strongest coupling available. The bare NTCLE100E3 bead responds in about 1.2 s in oil against its 15 s time constant (Vishay NTCLE100E3). A housing slows it: an NTC sealed in a stainless steel capsule takes 13 to 16 s to reach 63.2 % when moved from 25 °C air into boiling water (Vishay NTCAIMME3). In a drilled hole, fill the clearance with compound, because an air-filled hole behaves like the dry joint above.
  • Watch out: immerse the tip far enough. A tip that barely enters the medium reads a blend of medium and fitting, and the fitting sits closer to ambient.
  • Keep it in the hole: a sensor in a drilled hole also has to stay put. A hot-end thermistor held only by its own wires can work its way out of the block over repeated heating cycles, and the first sign is often a failed print. Fix it with a clip, a set screw or a rated adhesive. If the reading is still erratic with the sensor seated, test the sensor itself before reworking the mount, and check that any paste is rated for the block temperature.

4. Threaded fittings

  • How it works: a sealed probe with a threaded body screws into a boss or pipe port, so the tip sits in the fluid and the thread makes the seal.
  • Best for: pressurised water, oil and coolant circuits in boilers, heat pumps, compressors and coffee machines.
  • Response and error: set by the housing. Our MFP-7 threaded pipe sensor is specified at a time constant of 30 s or less in water flowing at 0.4 m/s. The error stays small when the tip sits well inside the flow.
  • Watch out: the boss conducts heat to and from the outside, so a short probe in a thick boss reads toward the boss temperature. Tighten to the torque on the probe's drawing where one is given.

Thermal paste, epoxy or tape: what each joint is worth

Thermal paste matters on every surface mount because air conducts heat poorly. A silicone compound conducts about 27 times better than air (0.7 against 0.0262 W/m·K at 25 °C), so a gap that is mostly air passes only a small part of the heat the same gap would pass when filled (our calculation from the figures below).

Joint filler Thermal conductivity Relative to air Source
Air (dry joint) 0.0262 W/m·K (at 25 °C) 1 Engineering ToolBox
Silicone heat transfer compound (MG Chemicals 860) 0.7 W/m·K about 27 MG Chemicals 860
Thermally conductive epoxy (MG Chemicals 8329TCM) 1.3 W/m·K about 50 MG Chemicals 8329TCM
High-conductivity thermal grease (MG Chemicals 8616) 2.0 W/m·K about 76 MG Chemicals 8616
Copper (ring-lug body) 385 W/m·K about 14,700 HyperPhysics table

Tape holds the sensor and, laid over it, shields it from moving air, which lowers δ. It does not fill the gap underneath. Put compound under the sensor and tape over it, rather than relying on tape alone. Aluminium tape (205 W/m·K for aluminium in the HyperPhysics table) also spreads heat from the surface around the sensor; polyimide tape mainly holds it in place.

The same split shows up in electronics test work. For a power-supply test from −55 to +85 °C, polyimide (Kapton) tape over a dab of thermal paste holds a probe well and comes off cleanly. Epoxy and general glues are a poorer choice once the surface runs hot. Either way, insulate the exposed side of the sensor, or a surface reading can carry a large error.

Use the thinnest layer that fills the gap. The joint conductance is divided by its thickness, so a thick blob of compound gives back part of what it gained. A higher-conductivity grease helps less than the table suggests once the joint already passes far more heat than the sensor loses to the air: in the worked example, going from 0.7 to 2.0 W/m·K improves the reading by about 1 to 2.4 °C (our calculation).

The order of fixes matters more than the choice of grease. In the worked example, insulation laid over the sensor (modelled as halving δ) does little while the joint is dry and halves the remaining error once the joint is filled:

Surface mount in the worked example Reading error on a 60 °C surface in 25 °C air
Dry joint, sensor exposed to the air about 20 to 27 °C low
Dry joint, insulation over the sensor about 14 to 22 °C low
Compound in the joint, sensor exposed about 2 to 4 °C low
Compound in the joint, insulation over the sensor about 1 to 2 °C low

Our calculation with the single-node model and inputs from the first section. If you can change only one thing on a surface mount, add compound; then insulate over the sensor.

A heated 3D-printer bed shows the effect of covering a sensor. A small sensor laid bare on a glass bed reads well below the bed temperature. Lay a piece of insulation over it and the gap shrinks to a fraction of what it was, which is the direction the table gives.

How to read a datasheet response time

A response time or thermistor time constant on a data sheet describes one test, not your mount. The same part can carry figures about 20 times apart depending on the medium:

Part Figure Test condition Source
Vishay NTCLE100E3, epoxy-coated bead 15 s thermal time constant (medium not stated) Vishay
Vishay NTCLE100E3 about 1.2 s response time in oil Vishay
Vishay NTCAIMME3, NTC in a stainless capsule 285 s thermal time constant in still air Vishay
Vishay NTCAIMME3 13 to 16 s 63.2 % of a step from 25 °C air into boiling water Vishay
Vishay NTCAIMME3 7.5 and 18 mW/K dissipation factor in still air and in still water Vishay
Focusens MFP-2 ring lug, MFE-1 pipe clamp, MFP-7 threaded, MFT plastic-housed 30 s or less time constant in water at 0.4 m/s our MFP-2, MFE-1, MFP-7 and MFT pages

Our own catalogue shows the limit of these numbers. The ring-lug, pipe-clamp and threaded probes all carry the same 30 s water figure, although ring lugs and pipe clamps are not used in water. The figure compares housings under one test. It does not tell you how fast a ring lug bolted to a heat sink will follow, which depends on the joints described above.

A ring lug on a heat sink shows the size of that. Bolt a ring-lug NTC to one face of an LED heat sink and press a bead NTC into a drilled hole on the other, and the bead will lead the ring lug by a few seconds on a power step. Part of that lag is heat crossing the sink, so it is an upper bound for the mount alone.

Also check which point on the step the figure refers to. The time constant (τ, or T63) is the time to 63.2 % of a step; T90, the time to 90 %, is about 2.3 times τ for a first-order sensor, and T50 is about 0.69 times τ (our calculation from the exponential response TDK describes). A 30 s time constant therefore means about 69 s to reach 90 %. Our thermistor vs thermocouple comparison and thermistor assembly selection guide list more figures by package and housing. Ask for the figure in the medium you will use, or for the dissipation factor in that medium, before you compare two probes.

How to mount a thermistor on a surface, step by step

  1. Clean the spot. Remove paint, oxide, oil and burrs where the sensor sits. A burr holds the tip off the surface and leaves an air gap.
  2. Apply a thin layer of thermal compound. Use just enough to fill the gap, spread rather than heaped.
  3. Fix the sensor with steady pressure. Clip, clamp, screw or bond it so the force stays on as the part heats and cools. For a ring lug, tighten to the torque specified for the stud.
  4. Anchor the leads. Run the first part of the lead along the surface before it leaves, and add strain relief so a pull on the cable cannot lift the sensor. A lead that runs along the surface comes close to its temperature, so less heat escapes through it. A bed thermistor held on only with Kapton tape is the cautionary case: if the cable slips and the sensor lifts mid-print, it reads close to room temperature and the controller keeps heating the bed. Strain relief and a mechanical fixing prevent that.
  5. Insulate over the sensor. A pad of insulation or foam tape over a surface sensor reduces the heat it loses to the air, and the offset falls in proportion.
  6. Check the reading against a reference. A resistance check with a multimeter confirms the circuit, not the thermal contact; our guide to testing an NTC thermistor with a multimeter covers that electrical check. To check the contact, compare the mounted reading with a calibrated contact thermometer on the same spot once the part is steady. The reference needs a good joint too: a thermocouple taped to a heated bed without compound is a dry joint, and in the worked example above a dry joint read 20 to 27 °C low (our calculation). Put compound under the reference as well. On a printer bed, part of any gap is the bed itself, because the printer's thermistor sits underneath it.

Mistakes that make a mounted thermistor read low or slow

  • A dry joint. No compound under a surface sensor is the largest single error in the worked example: about 20 to 27 °C low against about 2 to 4 °C with compound.
  • An exposed sensor in moving air. Air flowing over an uninsulated surface sensor raises δ, so the reading moves toward the air temperature.
  • The wrong adhesive. A general-purpose glue or tape adhesive fills the gap but conducts far less than a thermally conductive grade. Pick one with a stated thermal conductivity.
  • Crushing or bending the sensor. Over-tightening a clamp on a coated bead, or bending leads right at the body, can crack the element or its coating.
  • Moisture on an unprotected epoxy bead. An epoxy-coated bead in a humid enclosure absorbs water over months and its resistance shifts; our NTC thermistor guide explains why glass encapsulation is the usual answer.
  • Ignoring self-heating in still air. The measuring current heats the thermistor by the dissipated power divided by δ. TDK notes that δ rises in agitated air or in a liquid (TDK), so a well-mounted or immersed sensor self-heats less than the still-air figure on the data sheet suggests.
  • Measuring the wrong spot. A heat sink, pipe or housing is not one temperature. Mount where the temperature you control or protect is. On a heated 3D-printer bed the thermistor usually sits underneath, so the top of a glass plate runs cooler than the reading, and the gap grows with the set temperature.

How to choose a thermistor mounting method

Choose by what you need to measure first, then by whether the sensor must come off again.

What you measure What you need Method
A liquid in a pipe or tank under pressure the fluid temperature with a seal 4. Threaded fitting, such as our MFP-7 or SUS316 threaded probe
A liquid you can reach without pressure the fastest response 3. Insertion probe with the tip well immersed
A solid part you can drill response close to immersion 3. Insertion probe in a compound-filled hole
A flat metal part with a screw point removable and repeatable 1. Surface mounting: ring lug with compound, such as our MFP-2
A pipe, from outside only no cutting into the pipe 1. Surface mounting: pipe clamp or strap, such as our IP68 pipe clamp sensor or MFE-1
A vibrating part with no screw point permanent fixing 2. Epoxy bonding with a thermally conductive epoxy

Choosing the body of a surface sensor (ring lug, flat pad or pipe clamp) is a separate decision from how you fix it. The element sets the resistance curve and the tolerance, while the mount sets the response time and most of the error; our NTC thermistor guide covers R25, the B value and self-heating.

Focusens builds ring-lug, pipe-clamp and threaded NTC assemblies to order. Our ISO 9001:2015 and IATF 16949:2016 certificates are on the certifications page. To get a quote, send the surface or fluid, the temperature range, the response you need and how the sensor will be fixed through our contact page.

Frequently asked questions

Where should a thermistor be located?

Put the thermistor where the temperature you want to control is, with the shortest heat path to it: in the fluid for a fluid temperature and on the part for a part temperature, away from drafts and other heat sources. On a surface, insulate over it so it does not read the air.

Do I need thermal paste for a thermistor?

Thermal paste is needed on any surface mount. Air conducts about 0.026 W/m·K at 25 °C and a silicone compound about 0.7 W/m·K, so filling the gap lets about 27 times more heat through it (our calculation from Engineering ToolBox and MG Chemicals figures). In the worked example that cut the offset from about 20 to 27 °C to under 4 °C. A probe immersed in a liquid does not need it; a probe in a drilled hole does.

What is the response time of a thermistor?

A thermistor's response time depends on the package and the medium more than on the thermistor itself. Published figures for one epoxy bead run from about 1.2 s in oil to a 15 s time constant (Vishay NTCLE100E3), and an NTC in a stainless capsule needs 13 to 16 s from air into boiling water but has a 285 s time constant in still air (Vishay NTCAIMME3). Read the medium and the percentage, 63 % or 90 %, next to the number.

Does it matter which way a thermistor is wired?

Wiring direction does not matter for a two-lead NTC, because it is a resistor without polarity. Wiring errors come from lead and contact resistance, which our thermistor wiring guide covers.

Can I reuse a mounted thermistor?

A mounted thermistor can be reused if it was clamped, screwed or threaded in and is undamaged. Clean off the old compound and apply fresh compound before refitting it. Old paste can set hard: grease left in a hot-end thermistor hole can harden and trap the sensor, so use a small dab on the tip rather than filling the hole. An epoxy-bonded sensor usually cannot be removed without damaging it.

How tight should a threaded thermistor be?

A threaded thermistor should be tight enough to seal, and tightened to the torque on the probe's drawing where one is given. Over-tightening can distort the housing or the seat.


Sensor figures come from the Vishay, TDK and Texas Instruments documents linked in each section; joint conductivities from Engineering ToolBox, HyperPhysics and the MG Chemicals data sheets; Focusens figures from our product pages. Figures marked "our calculation" use the single-node model in the first section with the inputs stated there. None of the figures on this page is a measurement made by Focusens for this article.
