Quick Answer

Four sensor types dominate industrial and consumer temperature measurement:

• NTC Thermistors: highest accuracy (±0.1°C) for -55°C to +200°C, used in automotive coolant sensors, BMS, medical, and HVAC.

• PTC Thermistors (LPTC): resistance spikes at the Curie point — used for overcurrent/overtemperature protection, not measurement.

• PT100 / PT1000 RTDs: ±0.15°C Class A accuracy (DIN EN 60751), linear output, ideal for industrial process control and long cable runs.

• Thermocouples (K/T/S types): the only sensor type reaching 1600°C — used in exhaust, furnace, and foundry applications.

Rule of thumb: Below 200°C and need precision → NTC thermistor. Harsh industrial process → PT100/PT1000. Above 400°C → thermocouple.

Whether you're designing an automotive ECU input circuit, specifying sensors for a pharmaceutical cleanroom, or selecting components for an EV battery management system, choosing between NTC thermistors, PTC thermistors, RTD platinum resistance sensors, and thermocouples involves navigating four completely different operating principles, accuracy levels, and output signal types. This guide provides a complete side-by-side specification comparison, a real-world application selection table, and sensor-specific guidance based on Focusensing's 20-year manufacturing experience across automotive, medical, industrial, and IoT applications.

If you need a broader overview of temperature sensing technologies — including humidity transmitters, level sensors, and proximity switches — see our temperature sensor types complete overview guide

How Each Sensor Type Works: Core Operating Principle

1. NTC Thermistors — Resistance Decreases with Temperature

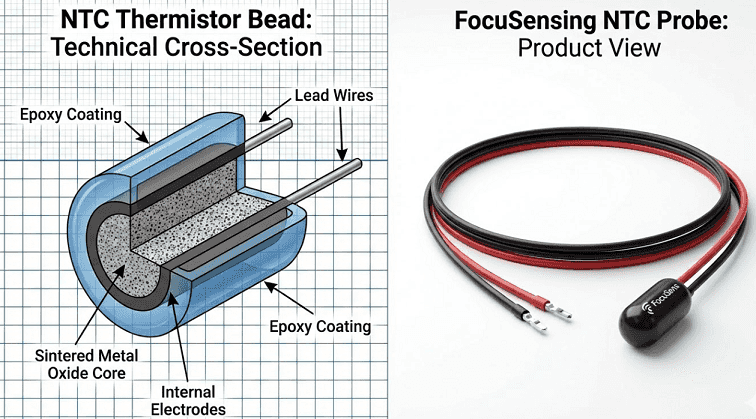

An NTC (Negative Temperature Coefficient) thermistor is a semiconductor device whose electrical resistance decreases exponentially as temperature increases. The relationship is governed by the B-value (Beta constant) equation:

R(T) = R₂₅ × exp [ B × ( 1/T − 1/298.15 ) ]

where T is temperature in Kelvin and B is the material constant (typically B25/85: 3435K to 3977K for standard automotive and HVAC grades). Higher B values produce steeper resistance-temperature curves and greater sensitivity in the target range.

Deep Dive: How NTCs Work + Beta Value Formula NTCs follow a non-linear R-T curve. Key parameters:

• R25: Resistance at 25°C (typical 10kΩ).
• Beta (B-value): Measures sensitivity. Higher B = steeper curve.

The resistance-temperature relationship uses: $R_T = R_{25} \exp\left(B \left( \frac{1}{T + 273.15} - \frac{1}{298.15} \right) \right)$ For higher accuracy over wider spans, engineers use the Steinhart-Hart equation (3-coefficient polynomial). Microcontrollers solve this via lookup tables or code.

Pros, Cons & Trade-offs

• Pros: Extremely low cost in volume, high sensitivity (3-5% resistance change per °C), fast response (0.1-10s for bead types).
• Cons: Non-linear (needs linearization), limited range (-50°C to +250°C), self-heating error if excitation current >1mA.
• Engineering Pitfall: Lead resistance has minimal impact (unlike RTDs).

Pro Tip (AllAboutCircuits): For linear output, add a parallel shunt resistor or use voltage-divider circuits.

NTC thermistors provide the highest sensitivity of all four sensor types at low-to-mid temperatures, but their output is non-linear — requiring either a lookup table or Steinhart-Hart equation for accurate conversion. For a complete guide to NTC thermistor specifications, B-value selection, and application design, see our NTC thermistor complete guide

2. PTC Thermistors — Self-Protecting Resistance Switch

PTC (Positive Temperature Coefficient) thermistors — specifically the linear PTC (LPTC) type used in automotive and industrial protection circuits — maintain a relatively stable low resistance below their Curie temperature (Tk), then exhibit a sharp, orders-of-magnitude resistance increase above Tk. This switching behavior is used for thermal protection, not continuous measurement.

Deep Dive: The Curie Point Transition

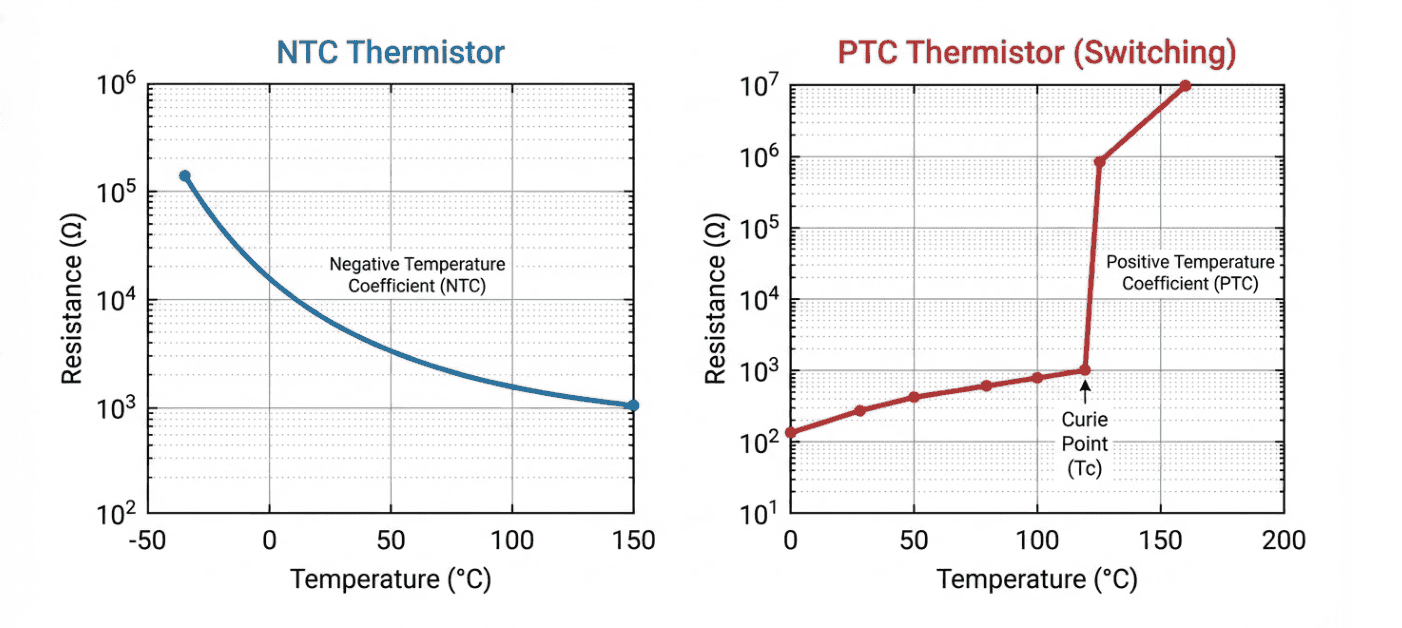

A switching PTC thermistor maintains a relatively low and stable resistance until it reaches a specific, engineered temperature known as the Curie Point (or Switch Temperature). Once this threshold is crossed, its crystalline structure changes, and its resistance violently spikes by several orders of magnitude within just a few degrees.

Deep Dive: Curie Point Transition PTCs stay low-resistance until they hit the engineered Curie Point (switch temperature). Resistance then jumps orders of magnitude in a few degrees due to crystalline phase change.

Why Use PTCs?

• Overcurrent/Short-Circuit Protection: Self-resetting fuse — heats up, resistance spikes, limits current, then resets on cooling.
• Self-Regulating Heaters: Cannot overheat; power self-limits as temperature rises.

Focusensing's LPTC automotive series (LPTC81/84) covers 24 standard models with R25 values from 200Ω to 4050Ω, operating temperature ranges from -55°C to +180°C, and tolerance classes of ±1%, ±2%, and ±5%.

For a detailed guide to testing and applying PTC thermistors — including DIN 44081/44082 motor protection specifications — see our PTC thermistor testing and application guide

3. PT100 / PT1000 RTDs — Linear, Stable, and Highly Accurate

RTD (Resistance Temperature Detector) sensors use the predictable increase in electrical resistance of pure platinum wire with temperature. Both PT100 and PT1000 conform to DIN EN 60751 with a Temperature Coefficient of Resistance (TCR) of 3850 ppm/K — meaning resistance increases 0.385Ω per degree Celsius per 100Ω of nominal resistance.

The key specification difference:

● PT100: R₀°C = 100Ω, R₁₀₀°C = 138.5Ω, range -50°C to +400°C

● PT1000: R₀°C = 1000Ω, R₁₀₀°C = 1385Ω, range -50°C to +600°C

Deep Dive: Thin-Film vs Wire-Wound + IEC 60751 Classes

• Wire-Wound: Highest accuracy/widest range (-200°C to +850°C), but vibration-sensitive.
• Thin-Film: Cheaper, faster response, vibration-resistant (modern default up to 500°C).

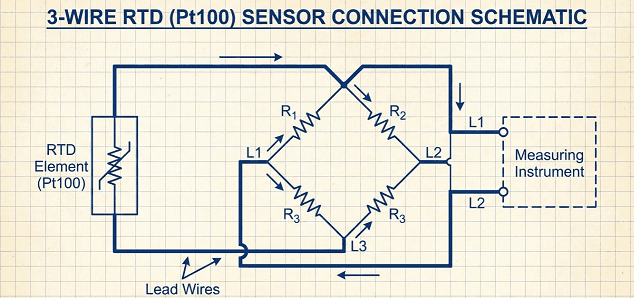

Wiring Challenge: Use 3-wire (Wheatstone bridge) or 4-wire to cancel lead resistance (Pt100 changes only ~0.385Ω/°C).

Pro Tip : Self-heating and drift are minimal vs. thermistors.

PT1000 is preferred for long cable runs (the higher base resistance makes lead resistance proportionally less significant), low-power IoT devices, and smart HVAC systems. For a complete PT100 vs PT1000 selection guide and resistance table, see our RTD wiring and accuracy guide

4. Thermocouples — Voltage Output from the Seebeck Effect

Thermocouples generate a small voltage (millivolts) at the junction of two dissimilar metals, proportional to the temperature difference between the hot junction (measurement point) and the cold junction (reference point). This makes them the only common sensor type that generates its own signal without requiring excitation voltage.

Focusensing supplies six thermocouple types for industrial and laboratory applications:

Type	Temperature Range	Class I Accuracy	Class II Accuracy	Primary Application
J	-40 to +600°C	±1.5°C or 0.004|t|	±2.5°C or 0.0075|t|	General industrial, lower cost
K	-40 to +600°C	±1.5°C or 0.004|t|	±2.5°C or 0.0075|t|	Most common, wide temp range
T	-40 to +350°C	±0.5°C or 0.004|t|	±1.0°C or 0.0075|t|	Most accurate, cryogenics & food
E	-40 to +800°C	±1.5°C or 0.004|t|	±2.5°C or 0.0075|t|	Highest output voltage/°C
N	-40 to +1200°C	±1.5°C or 0.004|t|	±2.5°C or 0.0075|t|	High-temp alternatives to K-type
S	0 to +1600°C	±1°C	±1.5°C	Furnace, foundry, platinum alloy

Table 1: Thermocouple type comparison — temperature ranges and accuracy classes per IEC 60584.

For a detailed comparison of thermocouples versus thermopile sensors and NTC thermistors, see our thermopile vs thermocouple complete guide

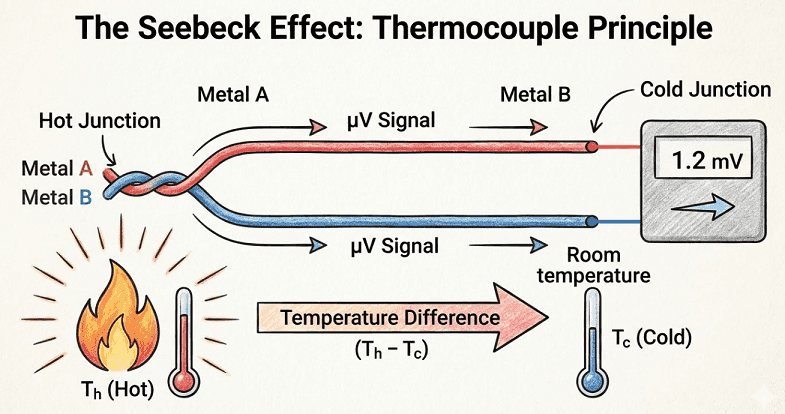

Deep Dive: Seebeck Effect Two dissimilar metals joined at a “hot junction” generate mV voltage proportional to temperature difference.

Industry Spotlight: Temperature Sensors in EV Battery Management Systems (BMS)

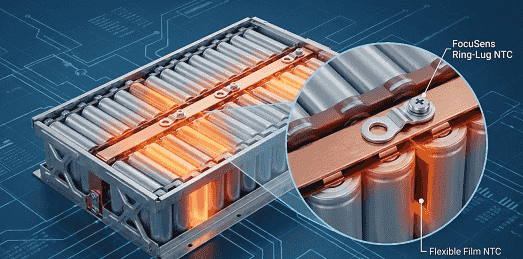

EV lithium-ion packs require 15–35°C tight control to prevent thermal runaway. NTCs dominate (cost + 100+ sensing points per pack + fast response). Flexible film or ring-lug NTCs fit between cells with 4000V insulation.

Ultimate 2026 Comparison Matrix

Sensor	Principle	Range	Accuracy	Linearity	Response	Cost	Best Applications
NTC	Resistance ↓ with temp	-50 to +250°C	±0.1–1°C	Poor (exponential)	Very fast	Very Low	HVAC, medical, EV BMS
PTC	Resistance ↑ sharply at Curie	-50 to +250°C (switch)	Switch only	Poor	Fast (switch)	Low	Motor protection, heaters
RTD (Pt100)	Resistance ↑ linearly	-200 to +850°C	±0.1–0.3°C (IEC)	Excellent	Moderate	Medium-High	Labs, food, process
Thermocouple	Seebeck voltage	-270 to +2300°C	±1–2.2°C	Moderate	Very fast	Low	Furnaces, engines, extreme

4-Step Decision Tree

1. Max temperature? >850°C → Thermocouple; <250°C → NTC/RTD.
2. Budget/volume? High-volume → NTC; low-volume/critical → RTD.
3. Accuracy/drift needed? <±0.15°C zero-drift → RTD Class A; ±1°C OK → NTC/TC.
4. Installation? Battery cells → Film NTC; corrosive → SS316 RTD; vibration → MI Thermocouple.

Partner with FocuSens Correct housing, IP68 sealing, and custom wire (Teflon/PVC) make or break projects. Our team offers free design consultation for your exact constraints. Explore custom solutions today.

The FocuSens Custom BMS Solution

Integrating sensors into a densely packed, high-voltage EV battery module is a severe mechanical challenge. Off-the-shelf components simply don't fit.

FocuSens engineers specialized automotive-grade Digital Temperature Sensor Assemblies designed specifically for EV architecture:

• Custom Form Factors: We manufacture highly specialized housings, including Ring-Lug Terminals that screw directly onto high-current busbars, and Ultra-Thin Flexible Film NTCs that slip seamlessly between cylindrical or pouch battery cells.

• High Dielectric Strength: Safety is paramount. Our BMS sensors are engineered with robust, multi-layer insulation to prevent lethal electrical arcing (up to 4000V AC) between high-voltage battery cells and the low-voltage BMS measurement circuit.

---

NTC vs PTC vs RTD vs Thermocouple: Full Specification Comparison Table

The table below provides a complete side-by-side comparison of all four sensor types across nine critical specification dimensions:

Parameter	NTC Thermistor	PTC (LPTC) Thermistor	PT100 / PT1000 RTD	Thermocouple (K / T / S Type)
Working Principle	Resistance ↓ as temp ↑ (NTC: Negative Temp Coeff.)	Resistance ↑ sharply at Curie temp (Positive Temp Coeff.)	Resistance increases linearly with temperature (platinum wire)	Seebeck effect: two dissimilar metals generate voltage proportional to ΔTemp
Temperature Range	-55°C to +200°C (standard grades) -196°C (biotechnology, on request)	-45°C to +180°C (LPTC81/84 automotive grade)	PT100: -50°C to +400°C PT1000: -50°C to +600°C	Type K: -40 to +600°C Type T: -40 to +350°C Type S: 0 to +1600°C
Accuracy	±0.1°C to ±2°C (B25/85: 3435–3977K)	Protection-grade: triggers at Tk (±1% to ±5% tolerance)	Class A: ±0.15°C Class B: ±0.30°C (DIN EN 60751)	Class I: ±0.5°C (T-type) Class I: ±1.5°C (K-type)
Output Signal	Resistance (Ω) Analog, non-linear	Resistance (Ω) Switching at Curie point	Resistance (Ω) Analog, highly linear (TCR: 3850 ppm/K)	Voltage (mV) Analog, requires cold junction compensation
Sensitivity	Very high at low temps (steep R-T curve)	Low until Curie point, then sharp resistance jump	Moderate, linear (0.385Ω/°C for PT100)	Low (≈40µV/°C for K-type) Requires amplification
Self-Heating Risk	Moderate — keep drive current below 0.1mA	Low in protection mode (not used as measuring sensor)	Low — 4-wire eliminates lead resistance error	None — voltage output requires no excitation current
Best Applications	Coolant temp, intake air, body temp, HVAC, BMS, coffee machine, refrigerator	Motor winding protection, transformer protection, EV overcurrent safety	Industrial process control, food & pharma, HVAC, long cable runs, lab instruments	High-temperature industrial, exhaust gas (EGT), kiln, foundry, engine exhaust
Focusensing Model	Bare disc / leaded NTC R25: 0.5K–10KΩ B25/85: 3435–3977 Custom tolerance ±1%/±2%/±5%	LPTC81/84 series 24 standard models R25: 200–4050Ω Op. temp: -55°C to +180°C	PT100 / PT1000 Class A (F0.15) / Class B (F0.30) DIN EN 60751 TCR 3850 ppm/K	Type K / J / T / E / N / S Custom probe assemblies Temperature range per type
Approximate Cost	Lowest (cents per unit at volume)	Low–Medium (protection device)	Medium (precision element)	Low–High (depends on type & assembly)

Table 2: Complete NTC thermistor vs PTC thermistor vs PT100/PT1000 RTD vs thermocouple specification comparison. All Focusensing specifications based on production data. Custom specifications available on request.

Application Selection Guide: Which Sensor for Which Application?

Use the table below to identify the recommended sensor type for your specific application. All specifications reference Focusensing standard production grades; custom specifications available on request.

Application	Recommended Sensor	Specification / Reason
Coolant temperature sensor (automotive)	NTC Thermistor	R25: 2.252KΩ, B25/85: 3977K — matches ECU lookup tables
Intake air / ambient temperature sensor	NTC Thermistor	R25: 2.19K or 2.78KΩ — fast response, low mass preferred
Motor winding thermal protection	PTC / LPTC	DIN 44081/44082 — triggers at Curie temp to protect windings
EV battery cell temperature (BMS)	NTC Thermistor	10KΩ NTC, B25/85: 3435–3977K — <100ms response time
Coffee machine brew temperature	PT1000 RTD	±0.15°C Class A — long-term stability in steam/water environment
Industrial process temperature (pipes)	PT100 RTD	3-wire or 4-wire — long cable runs, Class A accuracy
HVAC duct / room temperature	NTC Thermistor / PT1000	10KΩ NTC for cost-sensitive; PT1000 for high-accuracy BMS
Exhaust gas temperature (EGT)	Thermocouple Type K	-40 to +600°C, ±1.5°C — only sensor that survives exhaust temps
Kiln / furnace / smelting temperature	Thermocouple Type S	0 to +1600°C — platinum-rhodium alloy for extreme environments
Medical body temperature (disposable)	NTC Thermistor	R37°C: 1.355KΩ, accuracy ±0.2°C in 25–45°C range
Laboratory precision measurement	PT1000 RTD (4-wire)	Class A ±0.15°C, 4-wire Kelvin connection for maximum accuracy

Table 3: Temperature sensor selection guide by application. Based on Focusensing product range and 200+ global customer application data.

Accuracy Comparison: Which Sensor Is Most Precise?

Accuracy requirements should drive your initial sensor type selection — and the answer depends heavily on temperature range:

Accuracy at Different Temperature Ranges -55°C to +100°C (medical, HVAC, consumer): → NTC Thermistor: ±0.1°C (best in class for this range) → PT1000 RTD: ±0.15°C Class A → PT100 RTD: ±0.15°C Class A → Thermocouple T-type: ±0.5°C 100°C to 400°C (industrial process, food, pharma): → PT100 / PT1000 RTD: ±0.15°C Class A (best in class) → NTC Thermistor: ±0.5–2°C (high-temp grades) → Thermocouple K-type: ±1.5°C Above 400°C (exhaust, furnace, kiln): → Thermocouple only (RTDs and thermistors cannot survive) → Type T: not suitable above +350°C → Type K: ±1.5°C up to +600°C → Type S: ±1°C up to +1600°C
